Belt Conveyor Systems
DTII Belt Conveyor
Junxin DTII belt conveyor systems configured for the required material, capacity, route, belt width, drive and take-up arrangement.
Product Images
Product overview
Product Overview

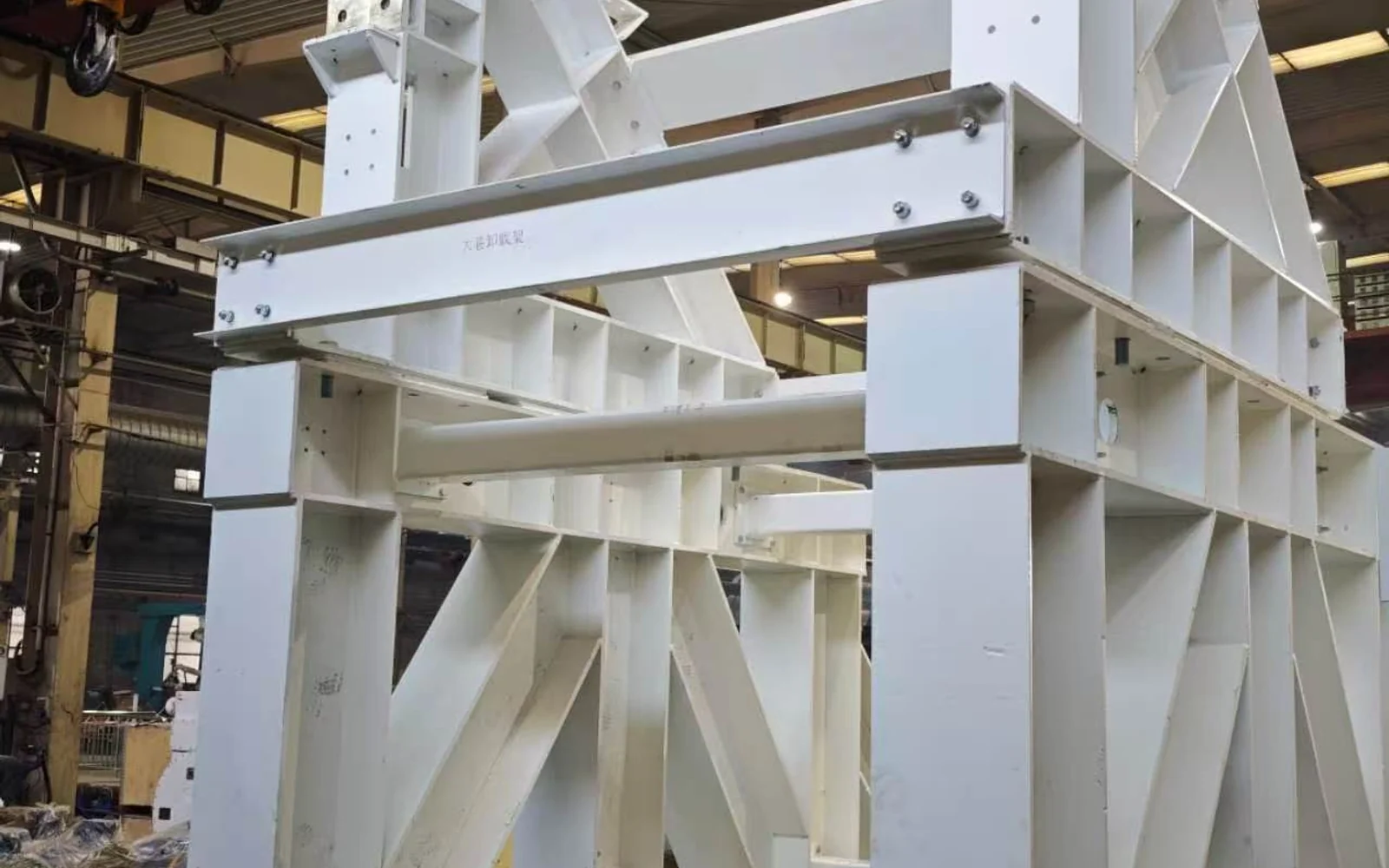

Junxin supplies modular DTII fixed belt conveyor systems for continuous bulk material transport. The supply scope can include the conveyor belt, drive and bend pulleys, carrying and return idlers, take-up equipment, cleaners, discharge equipment, supporting frames and guarding.
We configure each conveyor around the material, required capacity, route geometry, belt width, lift, drive position and site conditions. Horizontal, inclined and combined layouts are available for mining, cement, aggregate, coal-handling and other industrial transfer duties.
Technical data
Technical Specifications
Core configuration ranges for first-stage project review.
SpecificationAvailable configuration
SystemSystem Type
Fixed modular belt conveyorBeltBelt Width
400 / 500 / 650 / 800 / 1000 / 1200 / 1400 / 1600 / 1800 / 2000 / 2200 / 2400 mmBeltBelt Options
Fabric belt (CC / NN / EP) or steel-cord belt, selected according to dutyIdlersIdler Diameter Series
63.5 / 76 / 89 / 108 / 133 / 159 / 194 / 219 mmPulleysPulley Diameter Series
200–1800 mm series, selected according to belt width and operating dutyDriveDrive Arrangement
Motor + reducer / fluid-coupling drive / electric drum / engineered drive arrangementTake-upTake-up Options
Vertical counterweight / trolley take-up / screw take-up / winch take-upLayoutConveyor Arrangement
Horizontal, inclined and combined route arrangementsSelectionSystem Configuration
Selected according to material, capacity, belt width, route and operating conditionsComplete conveyor system
System Layout & Main Components
A simplified side elevation showing the principal DTII system groups used for configuration review.
Main System Components
- 01Drive Pulley
- 02Bend Pulley
- 03Conveyor Belt
- 04Carrying Idlers
- 05Return Idlers
- 06Take-up Device
- 07Supporting Frame
- 08Cleaner / Discharge Equipment
Route configurations
Typical Conveyor Arrangements
DTII conveyor systems can be configured around plant layout, elevation changes, discharge points and drive requirements.
Inclined Conveyor
Horizontal + Inclined
Combined / Multi-drive
System configuration
Configuration Options
Belt Configuration
- CC / NN / EP fabric belt
- Steel-cord belt
- Belt width selected by system duty
Drive Arrangement
- Motor + reducer
- Fluid coupling arrangement
- Electric drum
- Engineered high-power arrangement where required
Take-up System
- Vertical counterweight
- Trolley take-up
- Screw take-up
- Winch take-up
Pulley & Idler Configuration
- Multiple pulley diameter series
- Multiple idler diameter series
- Selected according to belt width and operating duty
Project data
Engineering Data Required for Selection
Final conveyor configuration should be based on actual project operating data. Send the information already available; missing items can be clarified during engineering review.
Send Your Drawing- Material
- Required capacity
- Bulk density
- Maximum lump size
- Conveyor length
- Horizontal distance
- Lift / elevation difference
- Route / inclination
- Required belt width, if specified
- Operating hours
- Installation environment
- Power supply
- Drawing / layout, if available
Application images
Project & Conveyor Views
Factory quality control
Manufacturing & Inspection
Before production, Junxin reviews fabrication dimensions, component interfaces and assembly requirements against the approved conveyor layout and project drawing.
- Structure fabrication check
- Pulley / idler interface check
- Assembly dimension check
- Guarding and access review
Application context
Related Industries
FAQ
Frequently Asked Questions
What information is required to select a DTII belt conveyor?
Provide the material, required capacity, route, belt width if specified, conveying distance, lift and operating conditions. A plant layout or general arrangement drawing is also useful when available.
Can the belt width be configured for different conveying duties?
Yes. The available DTII belt-width series ranges from 400 mm to 2400 mm, with final selection depending on the conveying requirements.
What take-up arrangements are available?
Vertical counterweight, trolley, screw and winch take-up arrangements are available depending on the conveyor layout and duty.
Can we send an existing conveyor layout or drawing?
Yes. Existing plant layouts, general arrangement drawings or conveyor specifications can be reviewed before quotation.
Related products
Related Products
Standard Conveyor Idler
DTII(A) conveyor idlers manufactured in multiple diameters, lengths and bearing arrangements for new and replacement conveyors.
View product
Impact Idler
DTII(A) impact idlers manufactured for conveyor loading and transfer zones in multiple roller sizes and mounting configurations.
View product
Drive Pulley
DTII(A) drive pulleys manufactured to the required torque, belt load, shaft, bearing and installation interfaces.
View product
Bend Pulley
DTII(A) bend pulleys manufactured for head, tail, take-up and other belt-redirecting positions.
View productEngineering inquiry
Prepare a Conveyor System RFQ
System selection begins with the material, duty and route rather than a catalog model alone.
- Material and required capacity
- Belt width and belt speed if defined
- Conveying distance, lift and incline
- Loading, discharge and operating hours
- Site environment and layout drawing
