DTII(A) conveyor idlers manufactured in multiple diameters, lengths and bearing arrangements for new and replacement conveyors.
Junxin manufactures DTII(A) standard conveyor idlers for carrying and return positions throughout bulk-material conveyor systems. Roller diameter, face length, shaft ends, bearings and seals are matched to the belt-support position and the existing idler frame.
Multiple roller diameter and length combinations are available for new conveyors and replacement requirements. Customers can send an existing drawing, measured roller dimensions or a sample reference so the mounting interface can be checked before production.
Available manufacturing ranges and configuration values are shown below. Final production data is confirmed for each order.
| Specification | Value |
|---|---|
| DTII(A) Standard Idler Specification Range63.5 mm | Length 160–950 mm · Bearing 6203/C4 |
| DTII(A) Standard Idler Specification Range76 mm | Length 160–1600 mm · Bearing 6204/C4 |
| DTII(A) Standard Idler Specification Range89 mm | Length 160–950 mm · Bearing 6204/C4 |
| DTII(A) Standard Idler Specification Range108 mm | Length 250–1600 mm · Bearing 6205/C4 |
| DTII(A) Standard Idler Specification Range133 mm | Length 250–2500 mm · Bearing 6305/C4 |
| DTII(A) Standard Idler Specification Range159 mm | Length 315–2800 mm · Bearing 6306/C4 |
| DTII(A) Standard Idler Specification Range194 mm | Length 600–2800 mm · Bearing 6407/C4 |
A simplified roller view showing the principal construction and interface areas used for idler selection and replacement review.
Send us your drawing, measured dimensions, sample reference or application data. Junxin will review the manufacturing configuration and installation interfaces before quotation.

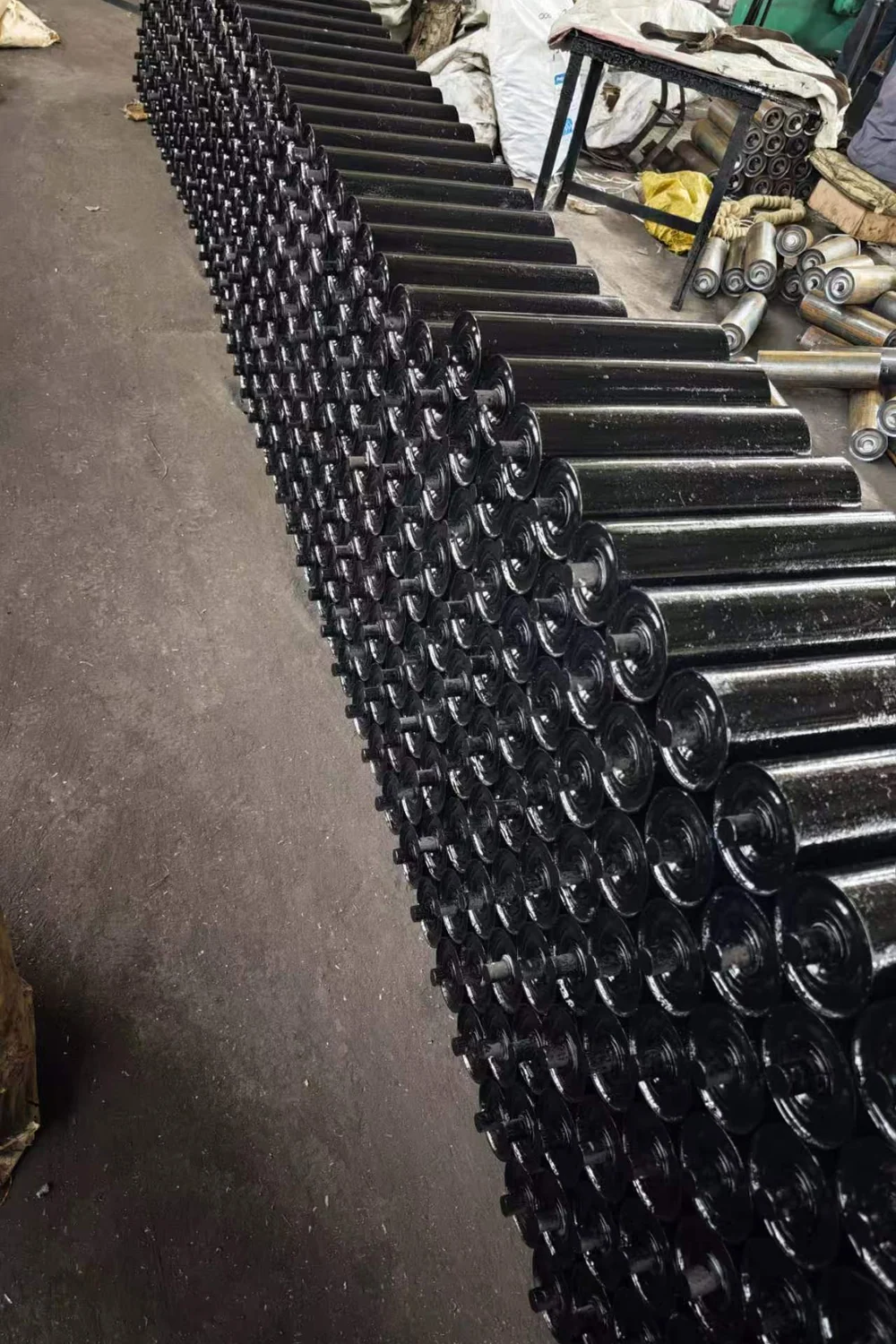

Junxin checks roller diameter and length, shaft-end dimensions, bearing fit, sealing arrangement and free rotation before packing.
Provide roller diameter, face length, shaft-end dimensions, bearing reference, belt width, installation position and required quantity. A drawing or clear sample dimensions are helpful for replacements.
Yes. Existing drawings, measured dimensions or a sample reference can be reviewed so the shaft ends and mounting interface match the installed frame.
Yes. Available combinations depend on the selected roller diameter and DTII(A) range shown on this page. Final dimensions are confirmed before production.
